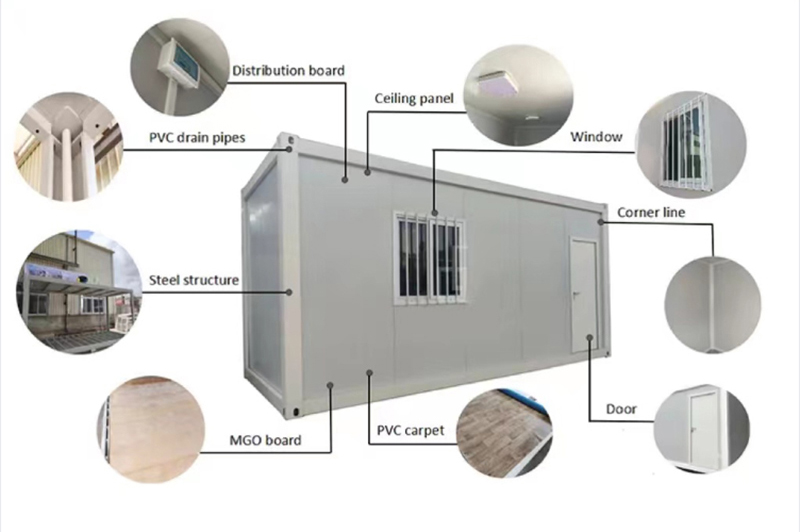

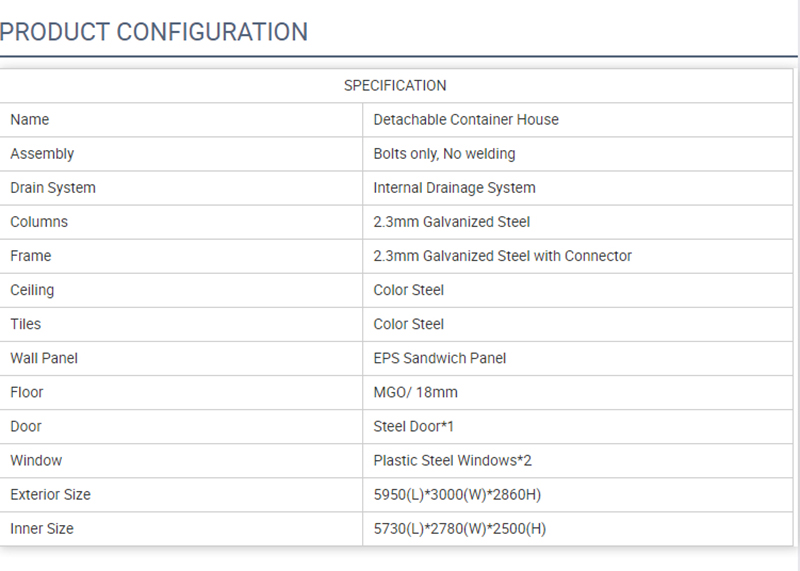

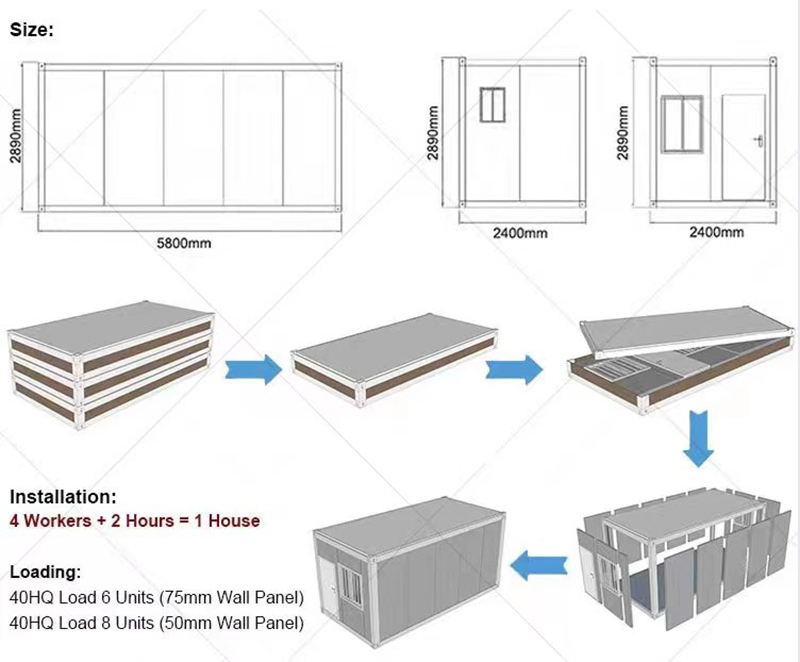

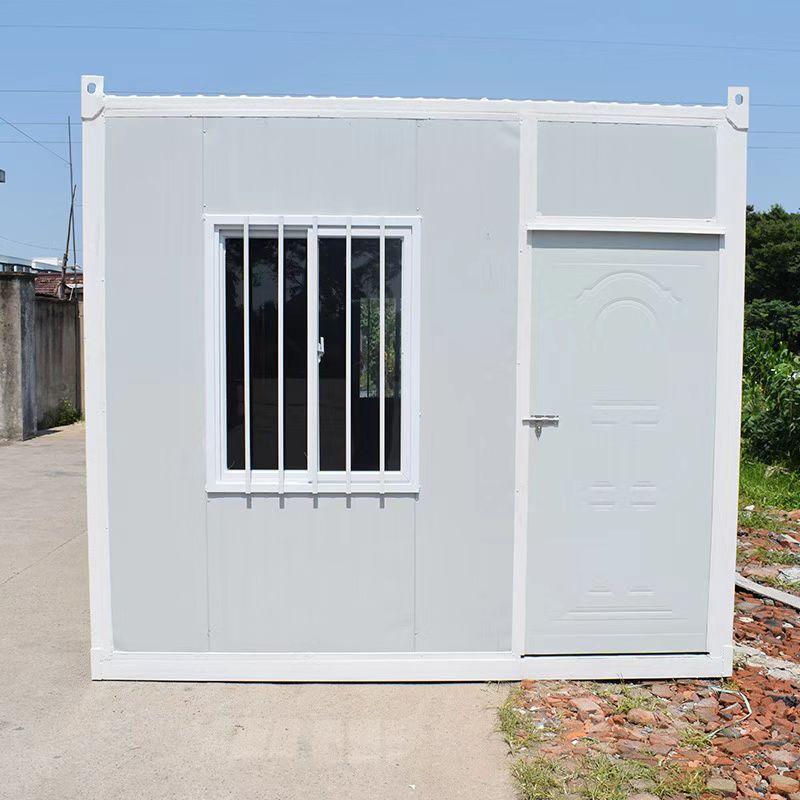

| Part Name 5990 * 2990 * 2870 | Name | Unit | Quantity | |

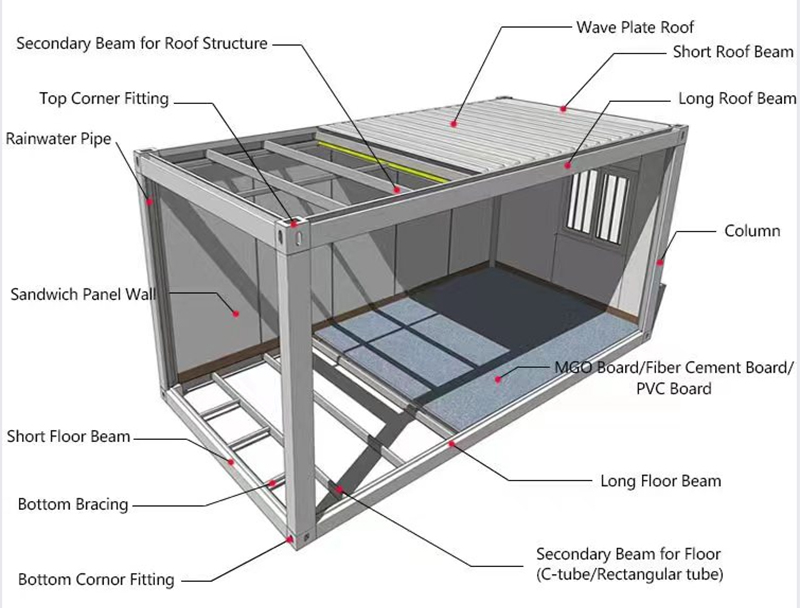

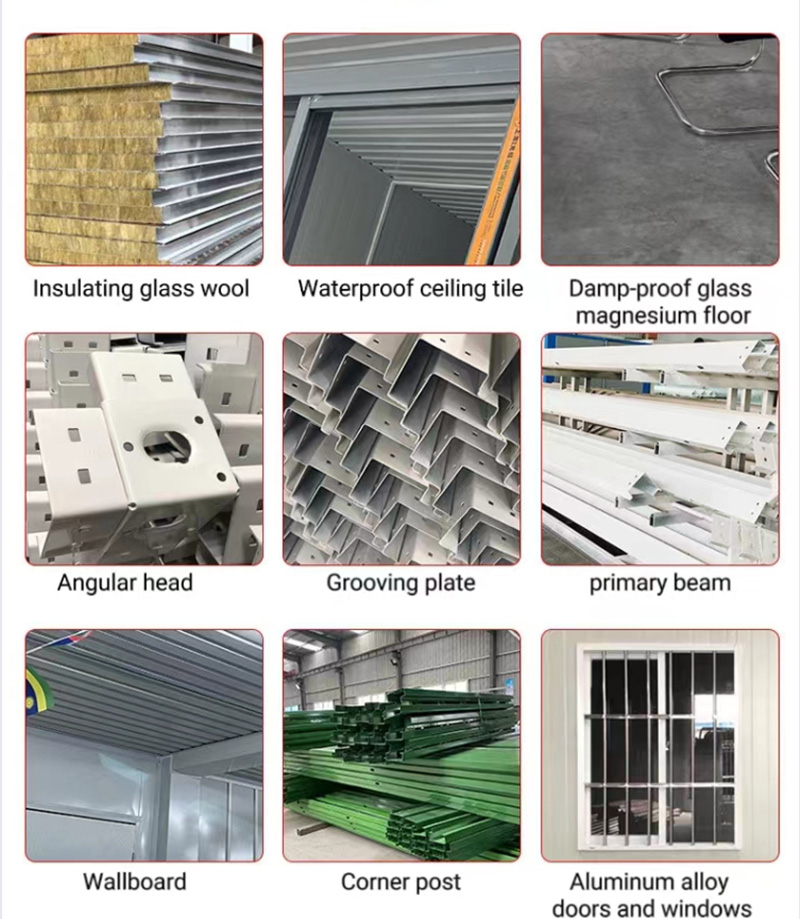

| Main frame 2.3mm (2.3mm after paint baking) | Top frame | 2.3mm galvanized formed beam, zinc content 80 G/m2, 170 wide | Branch | 2 |
| 2.3mm galvanized formed beam, zinc content 80 G/m2, 170 wide | Branch | 2 | ||
| Galvanized C80 * 1.2mm cross brace, zinc content 80 G/㎡ | Branch | 7 | ||
| 30 * 30 * 1.0mm galvanized square tube, galvanized content 80g/㎡ | Branch | 1 | ||
| 20 * 20 * 1.0mm galvanized square tube, galvanized content 80g/㎡ | Branch | 2 | ||
| Bottom frame | 2.3mm galvanized formed beam, galvanized content 80 G/m2, 160 wide | Branch | 2 | |
| 2.3mm galvanized formed beam, galvanized content 80 G/m2, 160 wide | Branch | 2 | ||
| Galvanized square tube 50 * 100 * 1.2mm galvanized cross brace, galvanized content 80 G/㎡ | Branch | 9 | ||
| Column | 2.3mm galvanized column, galvanized content 80g/㎡ 160 wide, 160 wide | Branch | 4 | |
| Connecting piece 8.0mm, galvanized content 80g/㎡ | Block | 8 | ||
| L-shaped column stiffener | Branch | 8 | ||
| Galvanized angle fittings | 3.0mm upper corner fitting, galvanized content 80g/㎡ 160 * 160 * 200mm | A | 4 | |
| 3.0mm lower corner piece, galvanized content 80g/㎡ 160 * 160 * 160mm | A | 4 | ||
| Single tile capping | 0.4mm color steel single tile, 360-degree occlusion, special waterproof method | Set | 1 | |
| Damp-proof | Moisture-proof film, PE resin film 1.0mm | Set | 1 | |
| 75 glass wool | 75mm glass wool insulation quilt + tinfoil paper, 14kg/m³ | |||
| Color | Baking varnish (electrostatic spraying) | Set | 1 | |
| Bolt | Hexagon socket (galvanized) | A | 40 | |
| Downspout | Downspout | 50 downpipe | Branch | 4 |
| Ceiling tile | Ceiling tile | 0.3mm, 831 color steel integrated ceiling board, covered with film | Set | 1 |
| Cement pressure plate | Cement sanding plate | 18mm thick, 1164 * 2820mm(Cement sand plate) | Zhang | 5 |
| Floor | Floor | 1.0mm floor leather | Set | 1 |
| The door | Steel fire lock door | 970 * 1970mm steel door (50 plug-in frame) | Set | 1 |
| Window | Burglarproof window | 930 * 1100 single-glass double-push anti-theft plastic-steel window (50 plug-in frames) | Set | 2 |
| Flooded geosyncline | 50 | Lower cross beam 0.6mm color steel base flume flashing integrated parts 5633 * 2, 2688 * 2 | Branch | 3 |
| Internal corner line | Color steel internal corner line, white ash | Branch | 4 | |
| Auxiliary materials | Auxiliary materials | Screw, sealant, internal box connection. | Set | 1 |
| Electric Distribution | Electric Distribution | 6 ² * 3-core wire, 4 ² * 3-core wire, 2.5 ² * 3-core wire, 1.5 ² * 3-core wire, 1.5 ² ² * 2-core wire, all copper wires, 1 three-hole (air conditioning) socket, 2 five-hole sockets, 1 single switch, 1 ceiling lamp, 1 J-8 distribution box, 1 32-A leakage protector, 1 set of industrial socket, 1 industrial socket box | Set | 1 |
| Model 950 | Double-sided 0.25 | 50mm rock wool composite board, double-sided iron sheet 0.25/0.25mm, unit weight 50 kg/m³? Double-sided orange peel, single-sided film | Set | 1 |
| Totally | ||||
