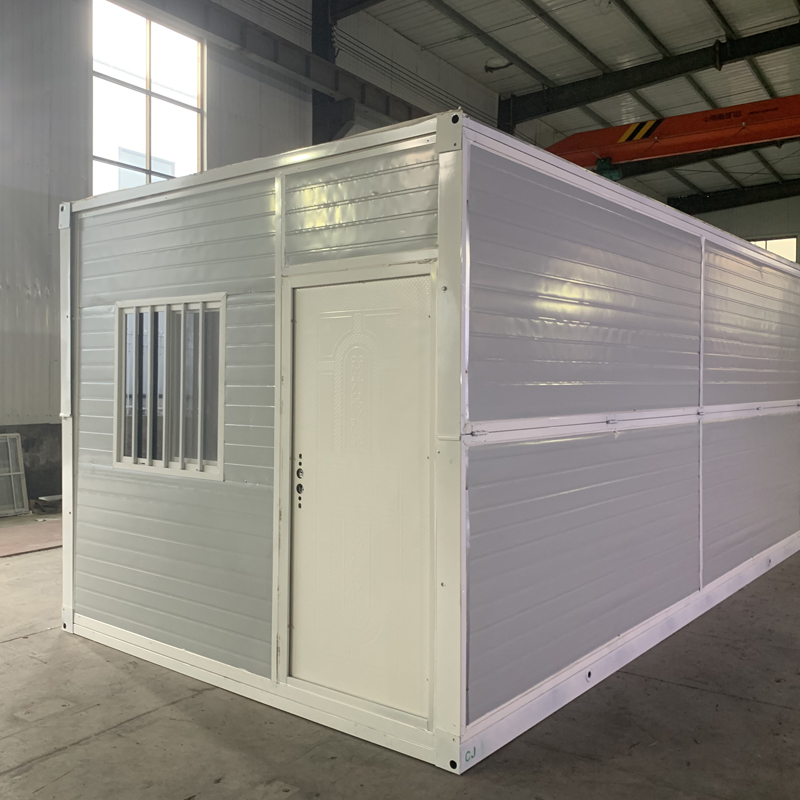

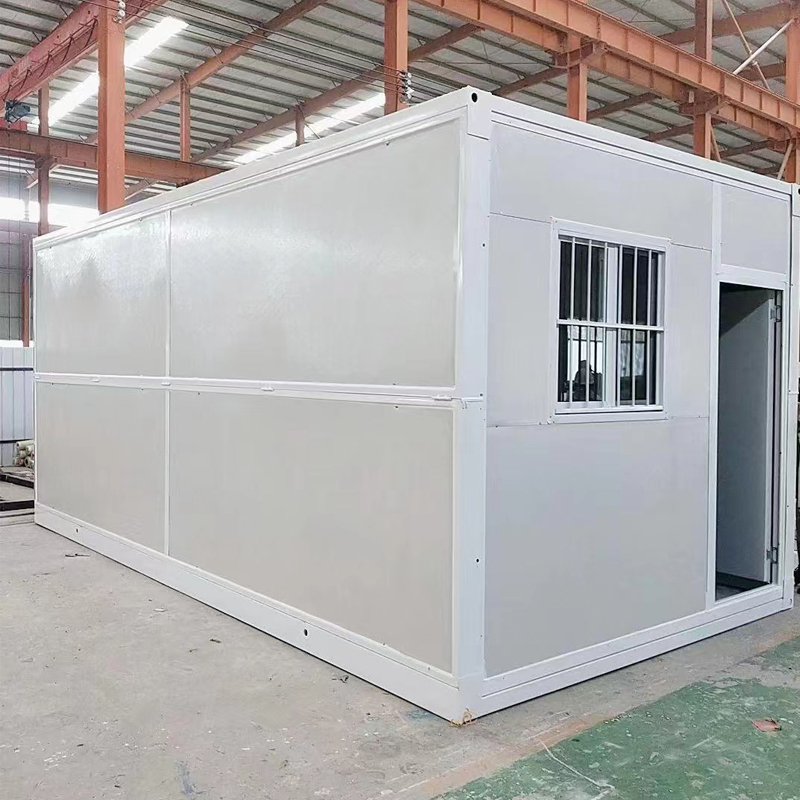

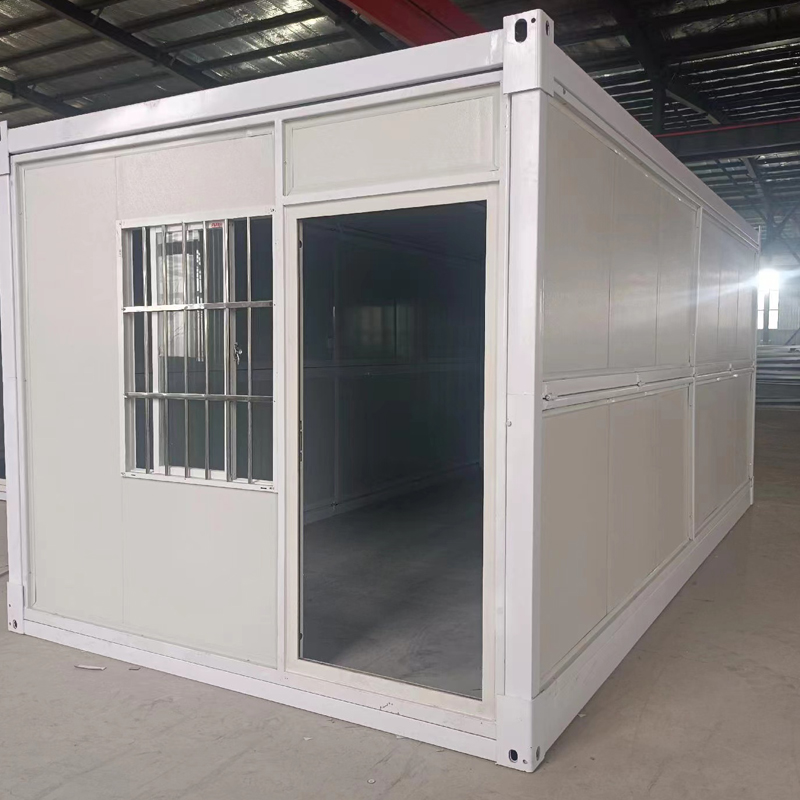

| Dolding room | ||
| NO. | Name of material | Configuration details |

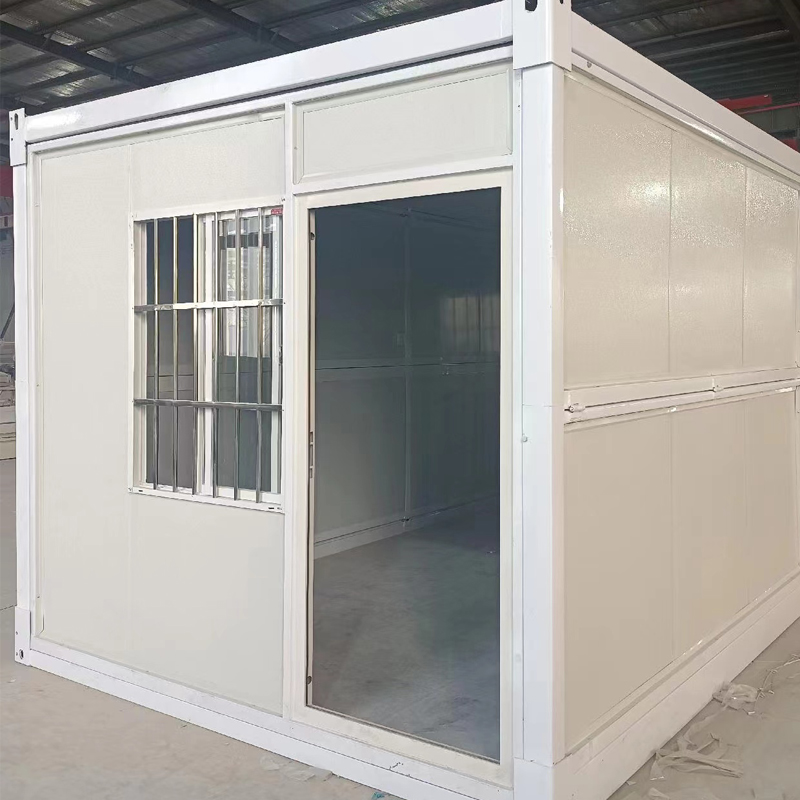

| 1 | External dimensions | L5800*W2460*H2510㎜ (main frame 1.5㎜±0.1㎜) |
| 2 | Internal dimensions | L5650*W2350*H2360㎜ |

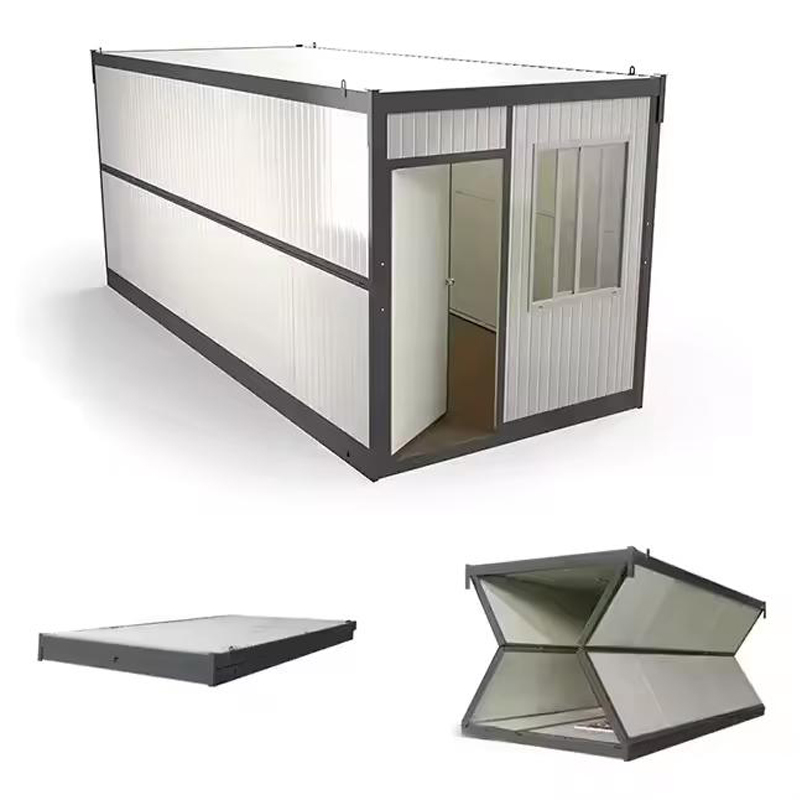

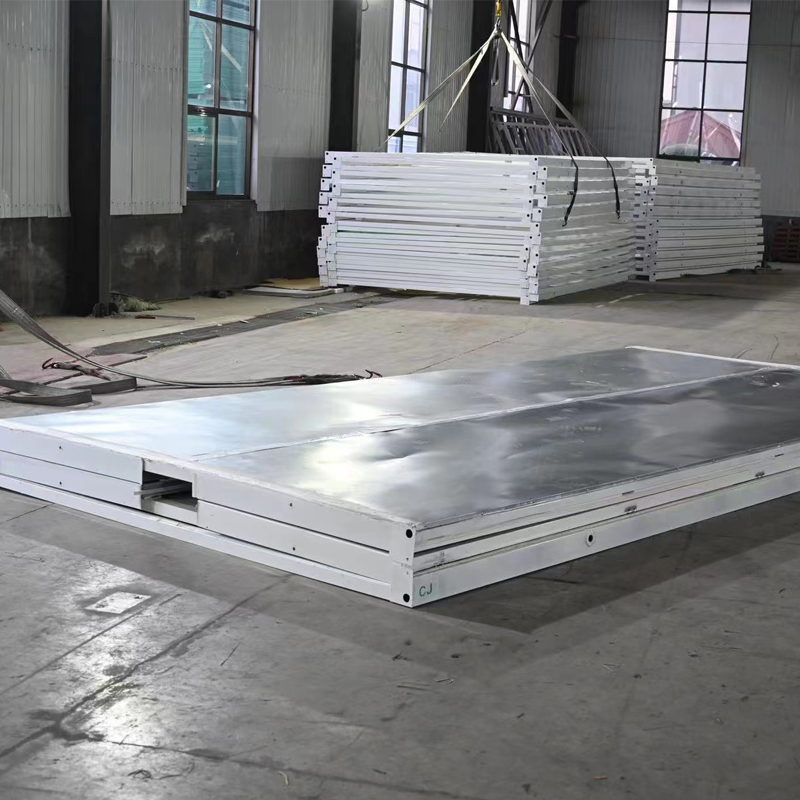

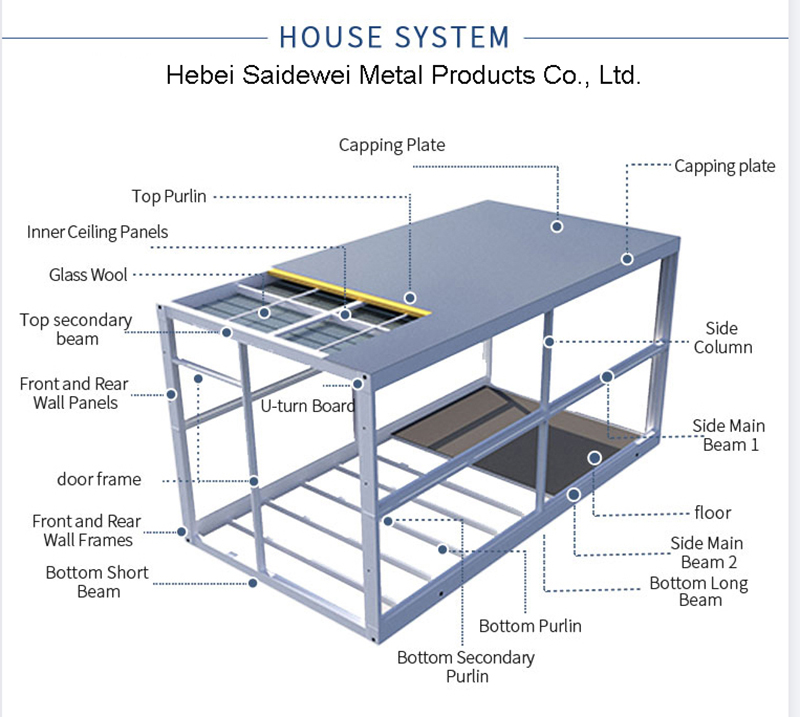

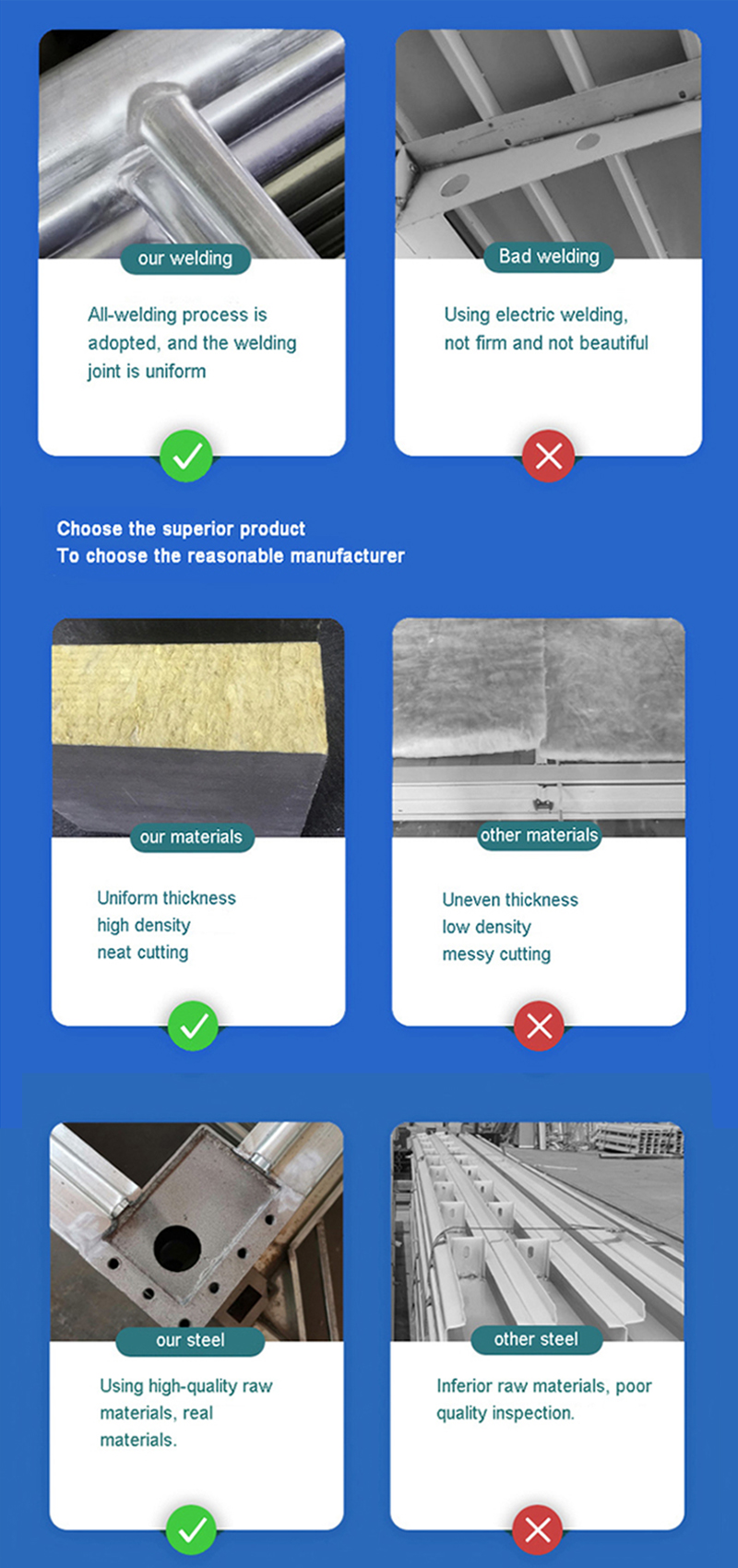

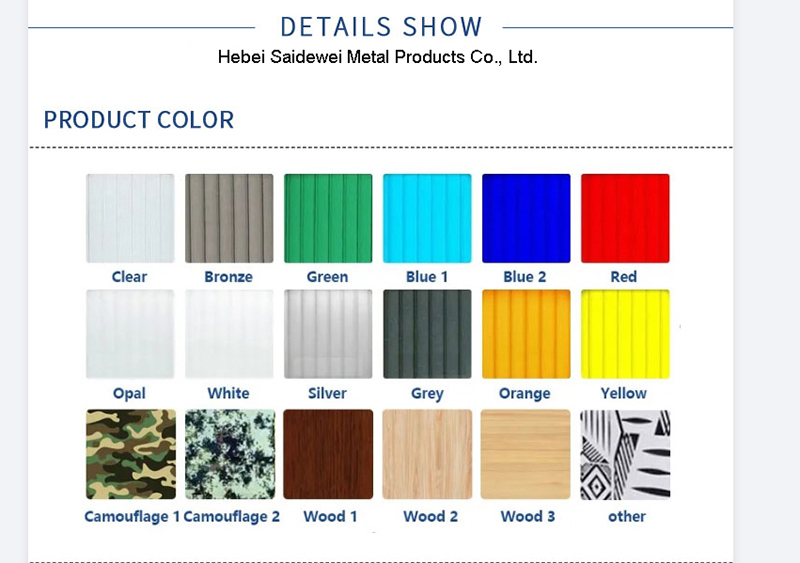

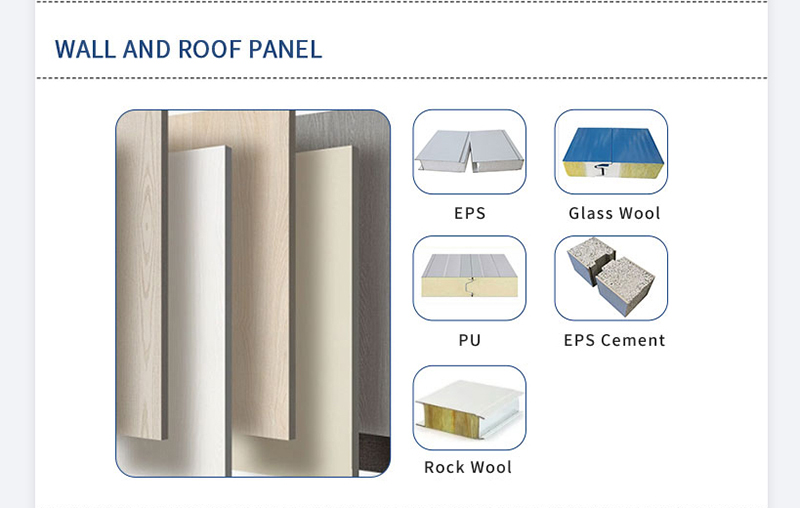

| 3 | Folded Size | L5800*W2460*H330㎜ |
| 4 | Weights | 780kg(±50kg) |
| 5 | Top structure | Rectangular square tube 5790*60*60㎜-2pcs; P-type tube 2340*40*60㎜-2pcs; Purlin 40*40㎜-5pcs; Square tube 20*40㎜-1pc; Hanging head 120*160㎜-4pcs; Overall frame electrostatic spraying (white) |
| 6 | Outer roof galvanized sheet 0.35㎜-14㎡; glass wire heat preservation sheep 50㎜-14㎡; butyl waterproof tape; colour steel veneer ceiling V930 type*0.3㎜-14㎡ | |
| 7 | Substructure | Rectangular square tube 5790*60*120㎜-2pcs; Rectangular square tube 2340*60*60㎜-2pcs; Purlin 40*40㎜-9pcs; Hanger head 120*160㎜-4pcs; Hook round hole φ35㎜-4pcs; Overall frame electrostatic spraying (white) |
| 8 | Cement fibre board 15㎜ (1164*2335㎜-5 pieces) | |
| 9 | Side wall construction | P-pipe 5780*40*60㎜-8pcs; P-pipe 1165*40*60㎜-8pcs; U-channel 1080*50㎜-8pcs; L-type zinc-plated folding piece 2890*25㎜-8pcs; L-type zinc-plated folding piece 1080*25㎜-8pcs; guard plate 1230*110㎜-8pcs; hinges-30pcs; D-type rubber strip 5950㎜-14pcs |
| 10 | Colour steel rock wool sandwich composite board 50㎜, capacity 50kg/³; double-sided colour steel 0.25㎜, double-sided pressure rib "water ripple", fireproof, flame retardant. | |
| 11 | Front and rear wall construction | P-pipe 2410*40*60㎜-4pcs; P-pipe 2320*40*60㎜-4pcs; U-channel 2320*50㎜-1pc; U-channel 935*50㎜-1pc; L-type zinc-plated folding 2230*25㎜-3pcs; L-type zinc-plated folding 2410*25㎜-2pcs; L-type zinc-plated folding 1300*25㎜-2pcs; L-type zinc-plated folding 930*25㎜-2pcs; L-type zinc-plated folding 450*25㎜-1pc; Hinge-4pcs; D-type rubber strip 2950㎜-8pcs |
| 12 | Colour steel rock wool sandwich composite board 65㎜, capacity 50kg/³; double-sided colour steel 0.25㎜, double-sided pressure rib "water ripple", fireproof, flame retardant. | |
| 13 | Door | Steel door 970*1970㎜-1pc (white) |
| 14 | Window | Plastic steel security window 930*930㎜-2pcs |
| 15 | power distribution | Electrical products comply with CE certification; 2 five-hole sockets; 1 three-hole socket; 1 LED lamp; 1 single switch; 1 20A circuit breaker |
| 16 | Design parameters | Structural design life: 10 years |
| 17 | Fire rating: Class A | |
| 18 | Floor live load: 200kg/㎡ | |
| 19 | Roof live load: 100kg/m2 | |
| 20 | Wind load: Class 8 | |
| 21 | Seismic grade: Grade 8 | |
